Ensure optimal mechanical performance with precise testing methods. We have to knowhow and expertise to execute complex verifications. For this we design and realise dedicated tooling. Our Advanced Testing think of providing accurate measurements for air bearings, dynamic properties, and concept validation..
Our Advanced Testing Solutions offer specialized methods to evaluate and optimize mechanical components. These solutions ensure accurate performance validation, essential for high-tech industries requiring precision and reliability.

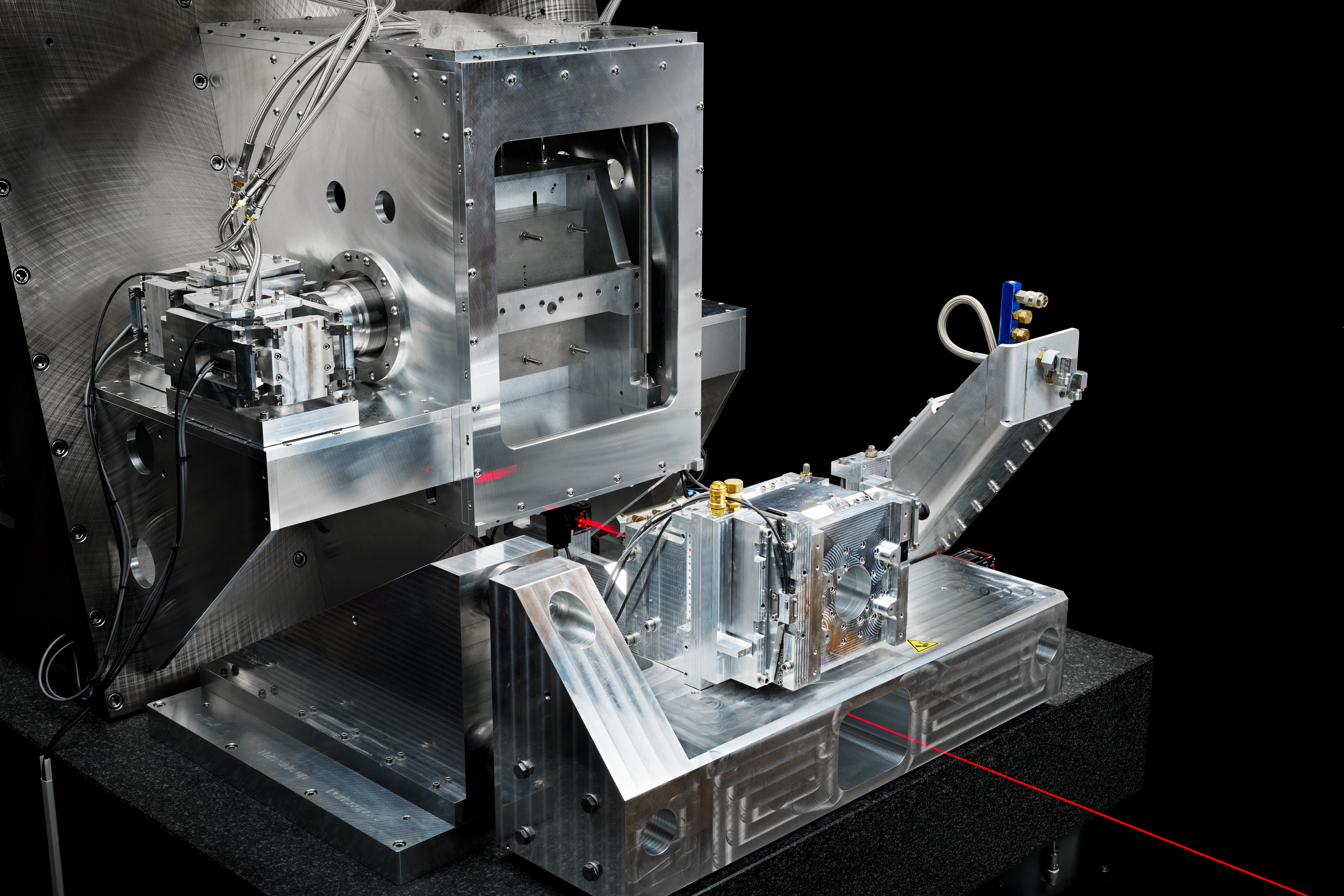

The Air Bearing Tester enables testing of various air bearings by applying controlled forces and measuring performance. Using high-precision sensors, we determine stiffness and airflow as functions of load and air gap. This method has been successfully applied to reticle stages and reticle masks.
With modal measurements, we analyze the dynamic behavior of mechanical modules. An instrumented hammer and accelerometers capture critical data to validate FEM models and improve design accuracy.

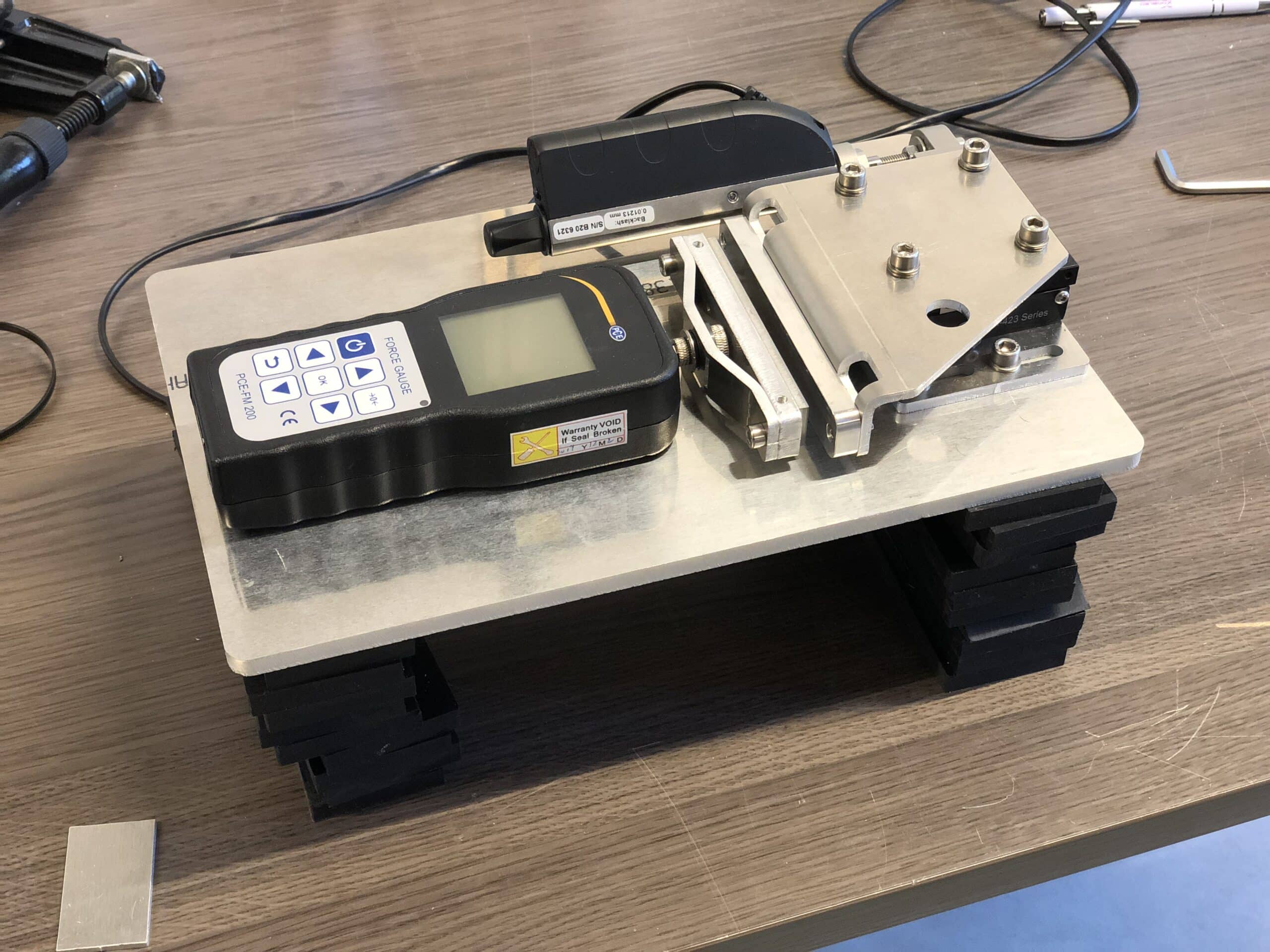

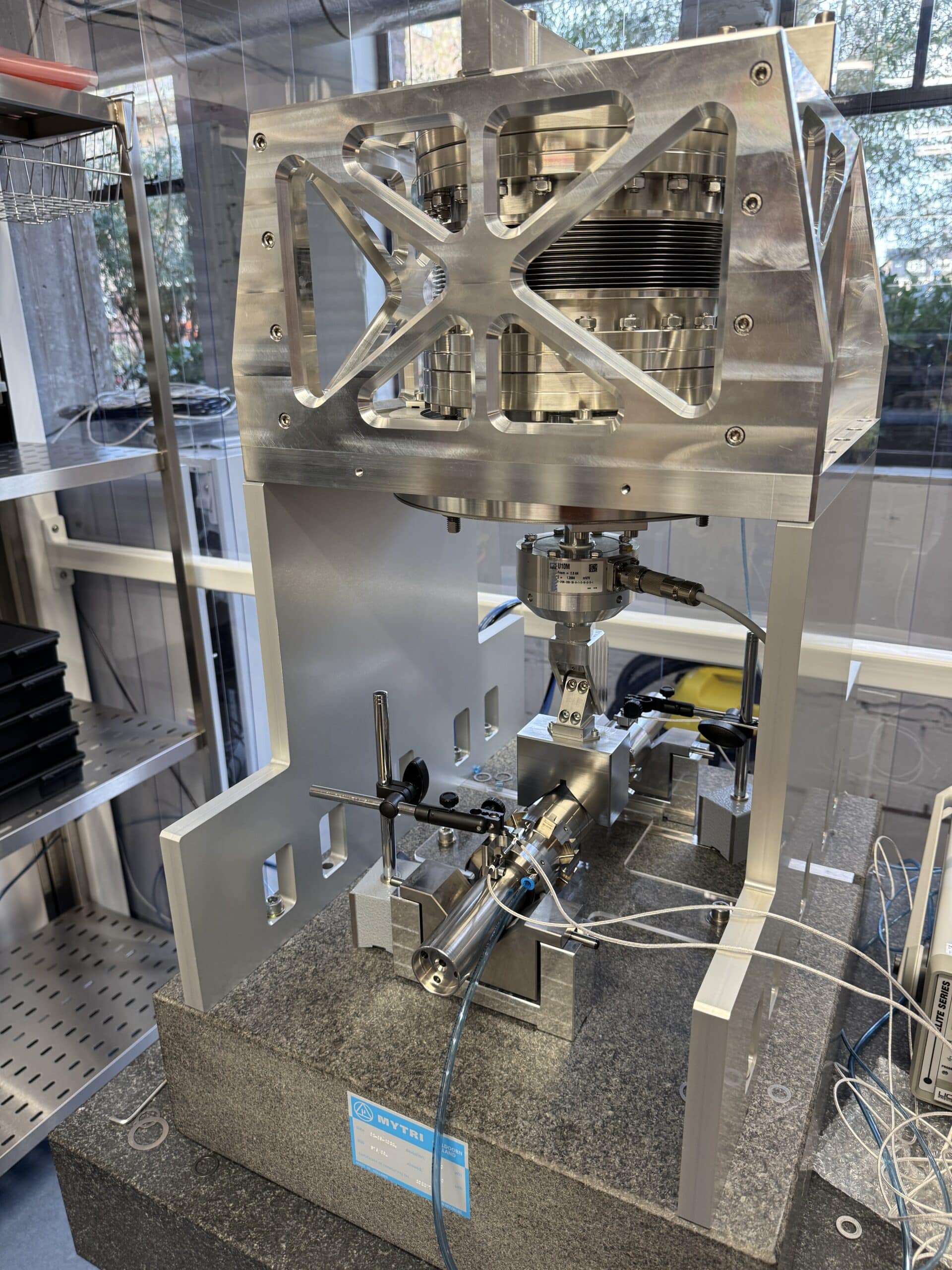

Additionally, Functional Model (FuMo) test setups allow for fast and effective concept validation. These setups evaluate actuator stiffness, natural frequencies, transmission ratios, and available actuator force. FuMos range from quick, small-scale tests to extensive validation systems.
Precise evaluation of force, stiffness and airflow.
Determining dynamic properties with advanced sensors.
Data-driven optimization of mechanical models.
Functional test models for concept verification.
Precise evaluation of force, stiffness and airflow.
Determining dynamic properties with advanced sensors.
Data-driven optimization of mechanical models.
Functional test models for concept verification.
